IN STOCK

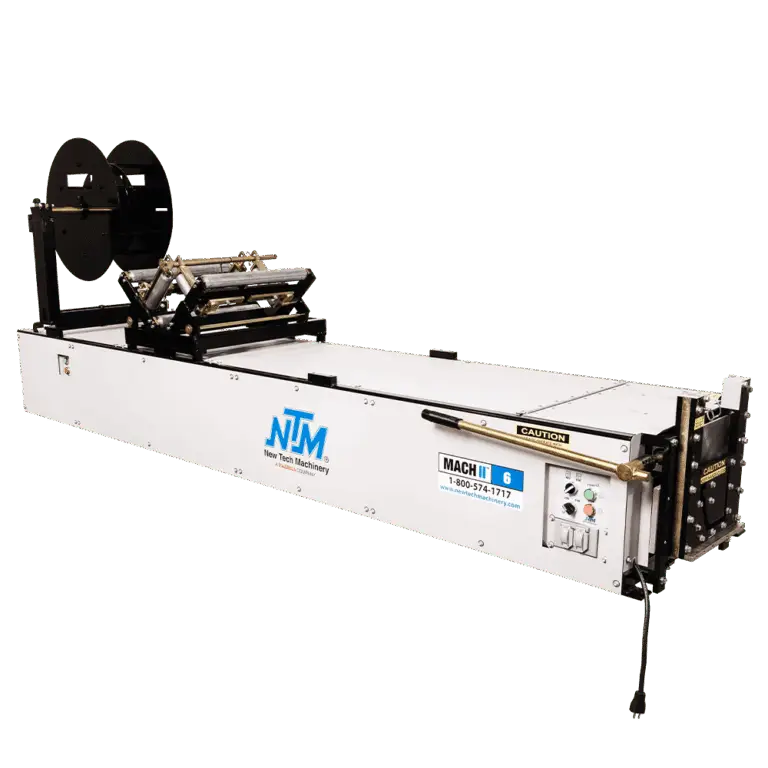

MACH II™ 6″ Gutter Machine
6” Gutter Machine — The Original Polyurethane Drive System.
Price Starting at $10,500+ USD, depending on machine configuration (Sales tax & Freight not included)
*Photo includes optional equipment available for an additional cost.
New Tech Machinery (NTM) began designing the first Mach II™ portable seamless gutter machine in 1991 and shipped the very first unit in 1994. More than three decades later, this portable roll-former is still a go-to for contractors who need to run K-style seamless gutters on-site. It’s the most copied machine in the industry and has been an essential part of helping contractors build successful businesses for over 30 years. Also, it’s offered with the industry’s best warranty.
30+ Years of Proven Performance
Discover why the MACH II™ 6″ has been the industry’s most trusted and copied gutter machine since 1994.
Related Resources
- Why Choose a Mach II 6″ Portable Gutter Machine?
- Best Accessories for NTM’s Portable Seamless Gutter Machines
- The 2025 Guide to Buying & Owning Your First Portable Gutter Machine
- How to Finance an NTM Portable Gutter Machine: A Short Guide
- Portable Gutter Machine Selection Guide: Mach II 5″, 6″, and 5″/6″ Combo
- MACH II 5″, 6″ & 5″/6″ Gutter Machines Brochure
- 5 Compelling Reasons to Invest in a Portable Gutter Machine
- Choosing the Best Gutter Machine and Profile for Your Business
MACH II™ 6″ Gutter Machine Details:
Standard Features
- Polyurethane Drive Rollers
- Two 360° Rotatable Reel Stands for Easy Coil Loading
- Stainless Steel Forming Rollers
- Electric Motor 3/4 HP, 110 VAC, 60 Hz, 1 Ph, 11 AMPs
- Push Button RUN/JOG Controls at Entry & Exit Ends
- Welded Tubular Steel Frame
- Forward Pulling, Easy Cut Shear for Accuracy
- Industry’s Best Warranty
- Power Interruption Safety Circuit
- Easy Lift Reels
Warranties & Patents
Warranty:
New Tech Machinery provides a limited three-year part and NTM in-house labor warranty. Read more about our warranty here.
Patents:
- U.S. PATENT NO. 5,394,722
- U.S. PATENT NO. 5,740,687
MACH II™ 6″ Gutter Machine Footprint & Specifications:

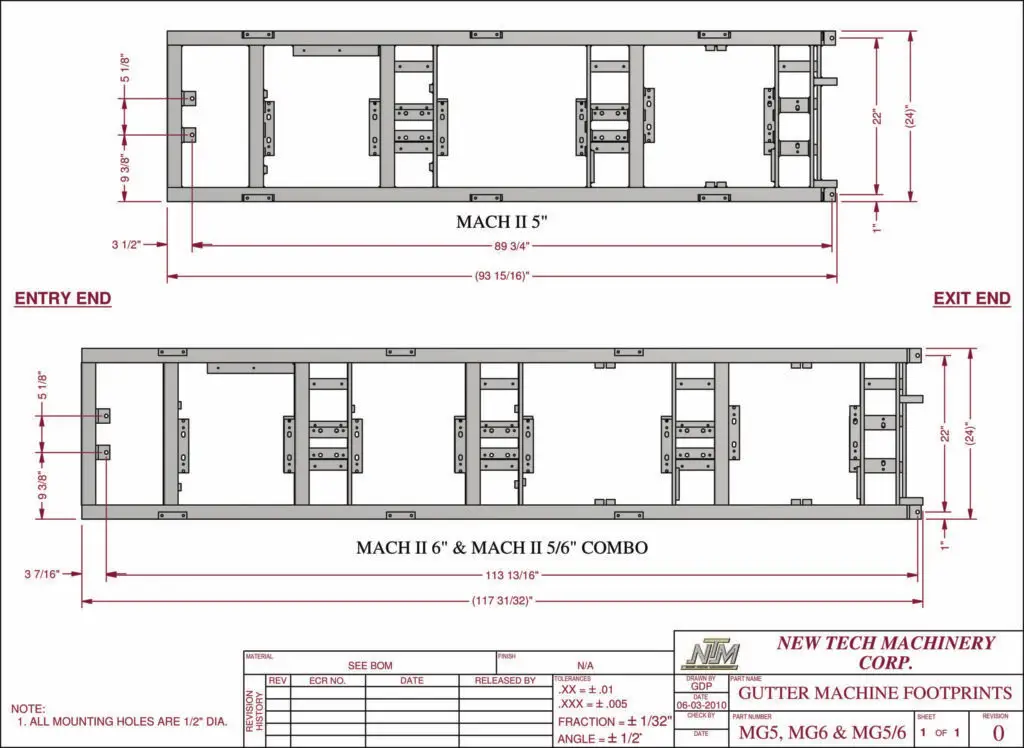

Footprint:
Specifications:
5” Gutter Machine
- Length: 8’ (2.4m)
- Width: 2’ (.6m)
- Height: 4’ (1.2m)
- Weight: 1,000 lbs. (454kg)
Speed
- 50 ft./min (15m/min) Approx.
Material Width
- 5” Gutter: 11-3/4” to 12-3/8” (300mm to 315mm)
- 6” Gutter: 15” (380mm)
Maximum Outside Diameter for Coil
- 30″ (762mm) on reel
6” Gutter Machine
- Length: 10’ (3.0m)
- Width: 2’ (.6m) Plus Shear Handle
- Height: 4’ (1.2m)
- Weight: 1,250 lbs. (570kg)
Materials Formed
- Painted Steel: 30 ga. to 24 ga. (.3mm to .6mm) (painted, Galvalume, coated galvanized)
- Painted Aluminum: .019″ to .032″ (.5mm to .8mm)
- Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)
5″/6” Gutter Machine
- Length: 10’ (3.0m)
- Width: 2’ (.6m) Plus Shear Handle and Extra Shear
- Height: 4’ (1.2m)
- Weight: 1,350 lbs. (610kg)
Shear
- Manually Powered
- Hardened Tool Steel Blades & Shear Dies
Drive
- Electrically Driven Polyurethane Rollers
Maximum Coil Weight
- Recommended maximum coil weight is 1000 lbs. for the reel and 400 lbs. for the cradle
MACH II™ 6″ Gutter Machine Upgrades:
MACH II™ 6″ Gutter Machine Profiles:
