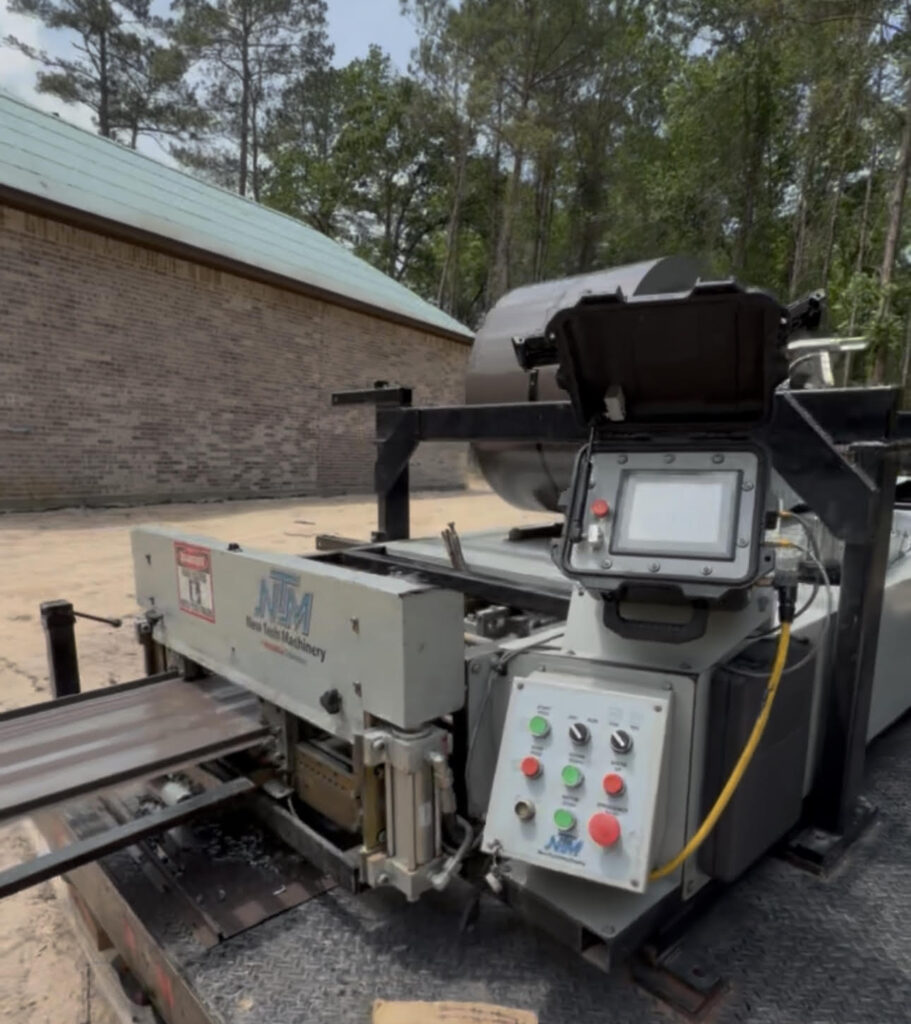

2021 SSQ II™ MultiPro Roof and Wall Panel Machine W/ SS450 Dies
Residential / Commercial Multi-Profile Roof and Wall Panel Machine
Asking Price $100K USD (Freight & Sales Tax Not Included)
- Machine comes with a set of SS450 – 1-1/2″ Snap-Lock Dies
- 16 quick-change profiles available for purchase
- The SSQ II is our latest iteration of the best-selling, most advanced, accurate, and user-friendly multi-profile machine
- Change tooling in 45 minutes or LESS with one person and one wrench
- Contractors all over the world trust this machine with their business
- Offered with NO WARRANTY, sold AS IS
SSQ II™ MultiPro Roof and Wall Panel Machine Details:
Standard Features
- 16 Polyurethane Drive Rollers
- Roller System with Shear Dies
- Hydraulic Drive & Shear
- Powder-Coated Aluminum Covers
- Welded Tubular Steel Frame
- Push Button RUN/JOG Controls at Entry & Exit Ends
- Power Interruption Safety Circuit
- UL Rated Panels (Must Be Certified by UL for Recognition)
- Availiable: Quick-ChangeTM Power-Pack (Gas or Electric)
- Availiable: One Pair of Bead, Pencil, Striation or V-Rib Rollers
Warranties & Patents
Warranty:
No Warranty, Machine is being sold AS IS – NO WARRANTY
Patents:
- U.S. PATENT NO. 6,772,616
Profile Disclaimer:
New Tech Machinery provides no warranty (finish, substrate or weather tight) in relation to the metal roofing systems the machines form. Should a warranty be required, users should consult with metal roof manufacturer or coil supplier prior to contracting on work. It is the sole responsibility of the installer and/or metal panel manufacturer to ensure that the roof system meets all engineering and local building codes.
Resources
SSQ II™ MultiPro Roof and Wall Panel Machine Specifications:
SSQ II Panel Machines:
- Length: 14’4” (4.4m) without Angled Slitter, 15’4” (4.7m) with Angled Slitter
- Width: 5′ 2″ (1.57m)
- Height with Over Head Rack: 4’ 3” (1.3m)
- Height without Over Head Rack: 2’ 6″ (0.8m)
- Weight (Base Machine with Roller Set, Power Pack, and Rib Rollers) 2,830 lbs. (1,280 kg)
SSQ II On Trailer:
- Length: 18’11” (5.8m)
- Width: 7’2½” (2.2m)
- Height with Reel: 6’3” (1.9m)
- Weight of Machine & Trailer (including Roller Set, Power Pack, and Rib Rollers): 5,090 lbs (2,300 kg)
Shear:
- Hydraulically Powered, Infinitely Adjustable, Hardened Tool Steel Blades & Shear Dies
- Panel Recognition Safety System
Drive:
- 16 Polyurethane Drive Rollers, Hydraulically Driven via Chain, Sprocket & Gear
Speed
- Gas Engine: 75 ft./min (23m/min) Approx. max.
SSQ II Add-On Option Weights
- Trailer: 2,260 lbs. (1,020 kg)
- Overhead Reel Rack: 336 lbs. (152 kg)
- Expandable Arbor, each: 80 lbs. (36 kg)
- 10-foot Run-out Table, each: 62 lbs. (28 kg)
- Perforator: 150 lbs. (68 kg)
- Notching System: 220 lbs. (100 kg)
- Angled Slitter: 250 lbs. (113 kg)
- Strippable Protective Film Applicator: 60 lbs. (27 kg)
Materials Formed:
- Painted Steel: 28 ga. to 22 ga. (0.4mm to 0.8mm) (painted, Galvalume, coated galvanized)
- 50 ksi maximum for 24 to 22 ga.
- Painted Aluminum: .027” to .040” (0.7mm to 1.0mm)
- Copper: 16 oz. to 20 oz. 3/4 Hard (0.5mm to 0.7mm)
- Note: Notching not recommended with copper.
- Terne Coat Stainless: 26 ga. (0.5mm) Note: Notching not recommended with terne coat.
Coil Widths:
- 15” to 30” (381mm to 762mm)
Maximum Coil Diameter
- 32” (812mm) with the Overhead Reel Rack 45” (1,143mm) with the Free Standing Decoiler
Finished Panel Widths:
- 12” to 24” (305mm to 610mm) – Note: Variable Depending on Panel Profile
Power Motor
- Gas Power (16 HP Briggs & Stratton Engine)
